Description

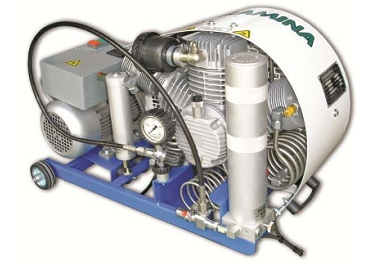

Breathing Air Compressor, portable, 3-staged, air cooled, oil lubricated manufactured by PARAMINA, model Mistral M6-EM 220V/50Hz or 230V/60Hz or M6-ET 400V/50Hz or 440V/60Hz (upon request) with electric motor 2,2kW/3Hp, suitable for all shipping, diving and fire-fighting applications with CE certificate.

Standard Equipment;

  • Micronic Air Inlet
  • Condensate Separator after 2nd
  • Two (2) Large Stainless Steel
  • Large Stainless Steel After-cooler
  • Large Fan for optimum cooling (400mm diam.)
  • Safety Valves in all stages.
  • BA filter Ø80Χ345 – including coalescing pre-filter (0,5 mg/m3 oil residual) , and B.A. cartridge Ø42Χ180 (Active Carbon / Molecular Sieve), with the supply of absolutely clean air exceeding by far the requirements of EN12021:2014 directive.
  • Pressure maintaining & non-return valve after final BA filter for extended BA filter lifetime.
  • Final stage glycerin manometer 400 bar.
  • Manual Condensate Drains.
  • Start/Stop switch.
  • Hour meter.
  • Motor thermal overload protection.
  • One (1) Kevlar* Filling hose – 1,2m length, complete with DIN & INT’L ‘‘A’’ filling connector.

*Kevlar hoses are manufactured with very strong & resistant material and are pin pricked for air relief in atmosphere in case of damage.

  • Automatic belt tensioning system.

Wheels for easy transport.
