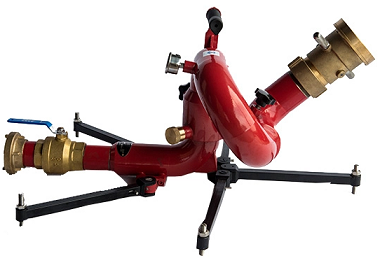

Mobile Water Monitor

Description

• Standard：MSC.365.(93) as amended, MSC.1/ Circ1472.

Application

The ships constructed on or after 1 January 2016 designed to carry five or more tiers of containers on or above the weather deck shall carry mobile water monitors as follows:

1. ships with breadth less than 30 m: at least two mobile water monitors; or
2. ships with breadth of 30 m or more: at least four mobile water monitors.

Structure and Material

Monitor body – 316 Stainless Steel
Monitor head – copper alloy

Performance Parameters
Type                                  water monitor
Spray medium                   Sea water/ fresh water
Flow                                  ≥1000L/min
Jetting range                     ≥40m
Rated working pressure    0.4MPa
Rotation range                   horizontal 270°/ vertical: 0～ +90°
Control mode                     Manual Operation
Jetting type                        Jet/Spray
Specification of inlet           DN50
Painting color                     RED（RAL3000）
Weight                               22KG
