Kratos Hexapod

Description

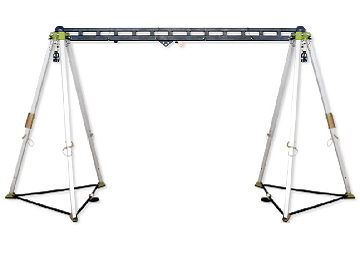

• Designed to be used where a classic tripod cannot be installed, for instance a trench, a hole, a silo, a well of large diameter or particular dimensional.The system is versatile and can adapted to a wide range of situations.
• Composed of 2 tripods connected through a horizontal rail in which slide 2 trolleys.All the accessories of a classic tripod can be installed on the Hexapod (winch, retractable fall arester with integrated rescue winch)
• Anchorage points: 2×2 anchorage points under the head of each tripod and 2 mobile trolleys.
• Can be used by 2 people at the same time.
• Max. working load of the trolleys 500kg
• Each tripod is provided with inbuilt fixture for attaching a winch as well as with a pulley.
• Min. breaking strength 25kN
